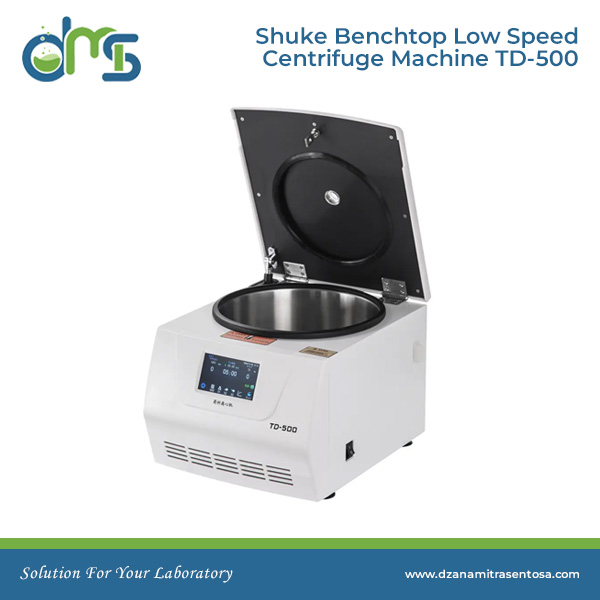

SHUKE - Benchtop Low Speed Centrifuge Machine TD-500
SHUKE – Benchtop Low Speed Centrifuge Machine TD-500
SHUKE – Benchtop Low Speed Centrifuge Machine TD-500 (2)

Benchtop Low Speed Centrifuge Machine TD-500

Benchtop High Speed Refrigerated Centrifuge Machine TGL-1650
Benchtop Low Speed Lab Centrifuge Machine TD-4Z

The TD-500 offers exceptional user comfort and a choice of 6 rotors,including the most popular swing out rotors for 15ml and 50ml tube.It adopts intelligent LCD touch screen,easily operate with gloves.Thanks to the strong operation system,it supports the multi-stage centrifugation and can store up to 1000 programs.

  • Max speed 5000rpm
  • Max RCF 4650xg
  • Max capacity 6x50ml
  • Timer range 1s to 99h59m59s
  • Speed accuracy ±10rpm
  • Noise ≤60dB(A)
  • Power consumption 500W
  • Dimension4 95x400x420mm
  • Net weight 27kg
Category: Tags: , ,

Description

Benchtop Low Speed Centrifuge Machine TD-500

 User-friendly functions:
  • LCD touch screen with simple & clear interface for viewing and setting parameters.
  • Intelligent status display,real-time and real values.
  • RCF can be set directly without RPM/RCF conversion.
  • Can set and store 1000 programs.
  • Can store 1000 run histories,can be exported via USB
  • 40 levels acceleration and deceleration rate.
  • Curve display—Speed curve,RCF curve are displayed together,clear to see their changing and relations.
  • Can set and save 5-stage centrifugation program.
  • Timer range: 1s-99h59min59s,programmable in 1s.
  • Can set password to the device to prevent misoperation.
  • Can change parameters under operation.
Ensure Safety:
  • Electronic door lock,controlled by independent motor.
  • Emergency lid-lock release
  • Lid can only be opened when completely stop running.
  • Port in the lid for calibration and operation checking.
  • Hydraulic rods support the lid.



Good components:
  • Motor: Variable frequency motor—stable running,maintenance free,long life.
  • Housing: Thick and strong steel
  • Chamber: Food grade 304 stainless steel— anticorrosion and easy to clean
  • Rotor: Aluminium alloy fixed angle rotor.Stainless steel swing out rotor.
Max Speed 5000rpm Motor Variable frequency motor
Max RCF 4620Xg Display LCD
Max Capacity 6*50ml Electronic lid lock Yes
Speed Accuracy ±10rpm Can change parameters under operation Yes
Timer range 1s-99H59m59s RCF can be set directly Yes
Noise ≤60dB(A) Can store programs 1000 programs
Power Supply AC 220V 50HZ 10A Adjustable acceleration and deceleration rate 40 levels
Dimension 495*400*310mm (L*W*H) Multi-stage centrifugation Yes
Weight 25kg Housing material Steel
Power 500W Chamber material Stainless steel
