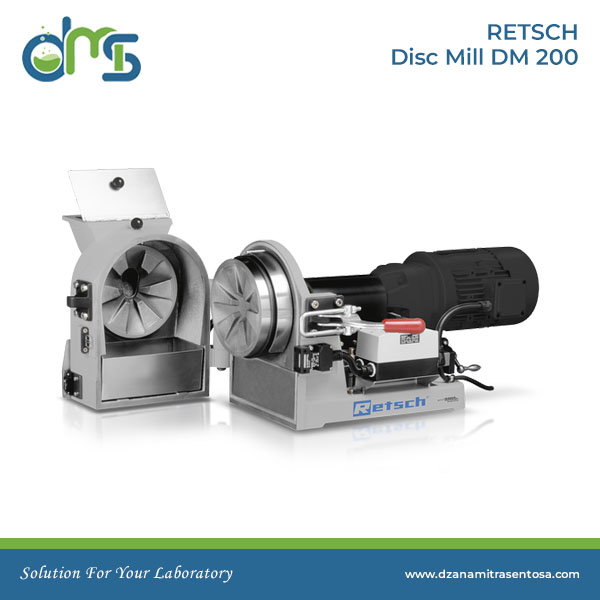

The Retsch DM 200 disc mill is a high-precision laboratory mill that is characterized by its excellent safety, long service life and enormous load capacity. It is ideal for crushing and pre-crushing materials in various industries such as building materials, chemistry, geology, glass and mechanical engineering. Compared to similar products such as the FRITSCH PULVERISETTE 9 Disc Vibratory Mill, the DM 200 offers a number of advantages, including a clear display, individually adjustable timers and speeds as well as programmable test conditions.
Category: Tags: , ,

Description

RETSCH Disc Mill DM 200

The Retsch DM 200 disc mill is a high-precision laboratory mill that is characterized by its excellent safety, long service life and enormous load capacity. It is ideal for crushing and pre-crushing materials in various industries such as building materials, chemistry, geology, glass and mechanical engineering. Compared to similar products such as the FRITSCH PULVERISETTE 9 Disc Vibratory Mill, the DM 200 offers a number of advantages, including a clear display, individually adjustable timers and speeds as well as programmable test conditions.

Technical details and advantages

The Retsch DM 200 disk mill is equipped with a variety of features that make it an optimal choice for precise size reduction tasks:

  • Process type: Batch
  • Mill type: Disc mill
  • Area of application: Comminution, pre-crushing
  • Area of application: Building materials, chemicals/plastics, geology/metallurgy, glass/ceramics, mechanical/electrical engineering
  • Feed material: Medium-hard, hard, brittle
  • Crushing principle: Pressure, friction
  • Feed grain size: < 20 mm
  • Final fineness: < 100 µm
  • Speed at 50 Hz (60 Hz): 440 min-¹ (528 min-¹)
  • Grinding tool material: zirconium oxide, hardened steel, tungsten carbide, manganese steel
  • Grinding gap adjustment: Continuous, 0.1 – 5 mm
  • Collecting container: 2.5 l
  • Drive: Three-phase geared motor
  • Drive power: 1.5 kW
  • Electrical connection values: Various voltages
  • Mains connection: 1-phase / 3-phase
  • Protection class: IP 55
  • Dimensions (W x H x D): 440 x 400 x 870 mm
  • Weight: ~ 140 kg
  • Norms/Standards: CE

These technical specifications make the DM 200 a versatile and powerful grinder that can be used in many laboratories and industrial applications.

Certifications and standards

The Retsch DM 200 disk mill complies with CE standards, which confirms its safety and quality. This certification ensures that the device complies with European safety, health and environmental protection requirements.

Application examples

The DM 200 is particularly suitable for:

  • Building materials industry: crushing cement, concrete and other building materials.
  • Chemicals and plastics: Processing of chemical compounds and plastics.
  • Geology and metallurgy: Crushing of rocks, ores and metals.
  • Glass and ceramics: Processing of glass and ceramic materials.
  • Mechanical and electrical engineering: Comminution of technical materials and components.
Model Disc Mill DM 200
Applications preliminary and fine grinding
Field of application chemistry / plastics, construction materials, engineering / electronics, geology / metallurgy, glass / ceramics
Feed material medium-hard, hard, brittle
Size reduction principle pressure, friction
Material feed size* < 20 mm
Final fineness* < 100 µm
Speed at 50 Hz (60 Hz) 440 min-1 (528 min-1)
Material of grinding tools zirconium oxide, hardened steel, tungsten carbide, manganese steel
Gap width setting continuous, 0.1 – 5 mm
Collector capacity 2.5 l
Drive 3-phase geared motor
Drive power 1.5 kW
Electrical supply data different voltages
Power connection 1-phase / 3-phase
Protection code IP 55
W x H x D closed 440 x 400 x 870 mm
Net weight ~ 140 kg
Standards CE

* depending on feed material and instrument configuration/settings
